| AIE-KX11/12 | AIE-KX21/22 | |
|---|---|---|
| Module Compatibility | NVIDIA Jetson AGX Orin 32GB | NVIDIA Jetson AGX Orin 64GB |
| AI Performance | 200 TOPS | 275 TOPS |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| CPU | 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Display | 1 x HDMI 2.0 Type A | |
| Audio | Line-out / Line-in / Mic (optional with daughter board) | |
| TPM | TPM v2.0 (optional) | |
| LAN | 1 x RJ-45 GbE port, 1 x RJ-45 10GbE port | |
| PoE Interface | 2 x RJ-45 GbE PSE (AIE-KX11) (IEEE 802.3af compliant, Power Output 15W/Port)* 4 x RJ-45 GbE PSE (AIE-KX12) (IEEE 802.3af compliant, Power Output 15W/Port)* |
2 x RJ-45 GbE PSE (AIE-KX21) (IEEE 802.3af compliant, Power Output 15W/Port)* 4 x RJ-45 GbE PSE (AIE-KX22) (IEEE 802.3af compliant, Power Output 15W/Port)* |
| *PSE Port 1 & Port 2 support IEEE 802.3at compliant; Total PSE ports support up to 60W | ||
| USB | 2 x USB 3.2 Gen1 Ty pe A, 1 x OTG Ty pe-C, 1 x USB 3.2 Gen2 Ty pe-C, 1 x DB-15 USB 2.0 | |

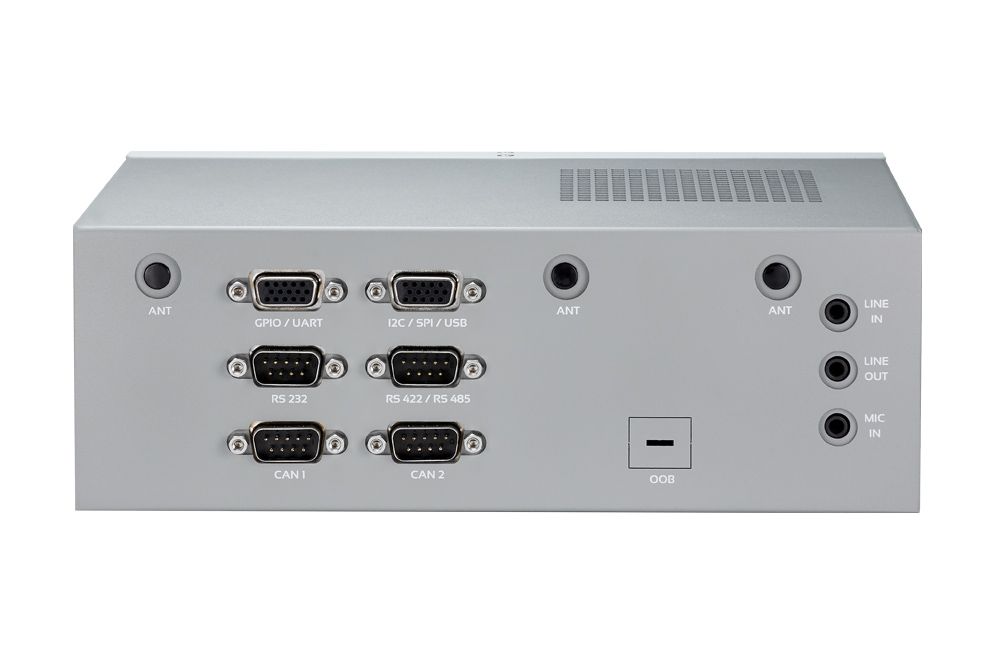

| I/O Interfaces | 2 x I2C, 1 x SPI, 5 x GPIO, 1 x RS-232, 1 x RS-422 / RS-485 (2-in-1), 2 x CAN 2.0b (isolation; support CAN FD) 2 x UART, 1 x microSIM Card Slot |
|
| Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G) 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2280 (supports NVMe; PCIe x2 Gen3) 1 x microSD Card Slot |
|
| MISC. Function | 1 x Power / 1 x Recovery / 1 x Reset Button | |
| Power Input/Connector | DC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector | |
| PoE Interface | Idle: 14.3 W Full Loading: 115.8* W |
Idle: 14.8 W Full Loading: 136.8* W |
| *For more test condition information, please refer to user manual | ||
| Dimension (WxDxH) | 220 x 170 x 79 mm (8.66 x 6.69 x 3.11 in) | |
| Mounting | Wall Mount (optional) / Din Rail (optional) | |
| Net Weight | 1.852 kg (4 lb) | |
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |
| Temperature | Operating Temperature: -25°C ~ +70°C (-13°F ~ +158°F) with 0.5 m/s airflow Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F) |
|
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |
| Software Support | Linux (Support Jetpack 5.0 above) | |
| Certification | CE / FCC Class A / UKCA | |
